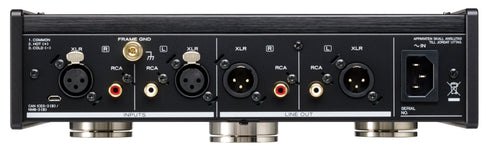

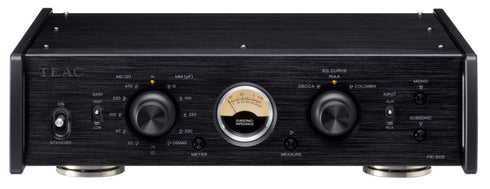

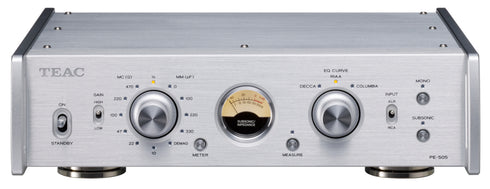

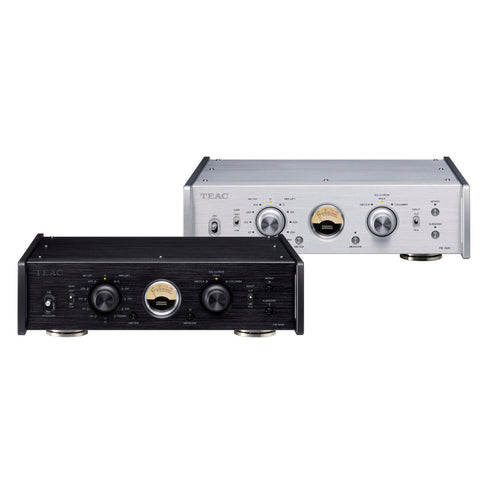

TEAC Full Balance Phono Equalizer Amplifier PE-505 (Black/Silver)

A phono equalizer amplifier featuring a dual monaural, fully balanced input/output circuit configuration. In addition to a fully balanced circuit, it supports EQ curves other than RIAA (curve set by the Recording Industry Association of America).

Would you like to experience the true sound that artists and engineers intended? The TEAC 'PE-505' is a phono equalizer amplifier with a dual monaural, fully balanced input/output circuit configuration that supports balanced input from MC cartridges.

Record faithfully, reproduce faithfully.
The PE-505, developed with the essence of TEAC's audio technology, which is dedicated to recording and reproduction, is a product that amplifies the minute signals from the stylus without compromising sound quality and, with a precise RIAA phono equalizer, aims to bring the sound as close as possible to the original sound before it was etched onto the record, in order to accurately reproduce the intentions of the record producer.

In addition to a high-precision RIAA equalization circuit, it also supports DECCA and COLUMBIA EQ curves. Furthermore, it not only supports load resistance for MC cartridges but also load capacitance switching for MM cartridges, allowing for settings tailored to your records and cartridges.

■ Full-balanced Circuit Design / Cartridge Differential Output Averaging Circuit
・The entire circuit, from the head amplifier and EQ (RIAA) amplifier to the buffer amplifier in the final output stage, features a balanced input/output circuit configuration, amplifying and equalizing minute signals output from the cartridge while maintaining their purity. RCA (unbalanced) input is also converted to differential transmission immediately after input.

・Equipped with a differential output averaging circuit that absorbs balanced output errors and achieves more accurate music reproduction. By configuring the + and - outputs as a cross-coupled differential amplifier, the positive and negative outputs are balanced, resulting in a purer and more natural musical signal reproduction.

■ High-precision RIAA EQ Circuit / High S/N Ratio / High-precision OLD EQ Curves
・High-precision RIAA EQ Circuit: A newly developed NF-type EQ amplifier circuit achieves RIAA deviation (20-20kHz) of ±0.05dB or less.

・High S/N Ratio: In addition to an S/N ratio of 106dB for RCA input (MM) and 86dB for XLR input (MC), it achieves high specifications with residual noise voltage of 10μV for MM and 85μV for MC (XLR).

・The PE-505 also supports two types of OLD EQ curves, DECCA and COLUMBIA, for monaural record playback, in addition to RIAA. Independent EQ circuits are provided for RIAA, DECCA, and Columbia respectively.

■ Diverse Setting Options and Unique Measurement Functions / DEMAG Function for Degaussing MC Cartridges
・Equipped with load capacitance switching for MM cartridges and load resistance switching for MC cartridges. Furthermore, MC cartridges feature a load resistance measurement function; by pressing the MEASURE key, the cartridge's load resistance value, including the cable, is displayed on the meter, allowing you to select the appropriate load resistance yourself.
It also includes a subsonic meter function that detects subsonic components below 6Hz and indicates them on the meter, and a subsonic filter (17Hz, -24dB/oct) that cuts unnecessary low frequencies outside the audible range.

・A simple degaussing function is included, which restores the original sound quality by degaussing the magnetized iron core of the MC cartridge or step-up transformer simply by playing a record for about 30 seconds in the DEMAG position.

●List of Features
・Fully differential input/output circuit
・High-precision RIAA EQ circuit with deviation of ±0.05dB or less
・Independent EQ circuits for DECCA and COLUMBIA are installed for playing monaural LPs and LPs cut with OLD EQ curves that were released around the time of the RIAA curve establishment in 1955
・Supports balanced input for MC cartridges
・MC load impedance switching (10, 22, 47, 100, 220, 470, 1KΩ)
・MM load capacitance switching (0, 100, 220, 330pF)
・MC load impedance measurement function (displayed on front analog meter) MM/MC gain switching function (12dB)
・Subsonic detection function (displayed on front analog meter)
・Subsonic filter function (17Hz, -24dB/oct.)
・MONO function that combines left and right channels and outputs them as monaural
・DEMAG (Degaussing) function to degauss magnetized cartridges
・Three-point pinpoint feet

 【Specifications】
・Amplifier Section
Total Harmonic Distortion (Rated output, 1kHz, GAIN LOW)
RCA input (MM) 0.002%
RCA input (MC) 0.02%
XLR input (MC) 0.02%
Residual Noise Voltage (Input short, GAIN LOW, IHF-A)
RCA input (MM) 10μV
RCA input (MC) 65μV
XLR input (MC) 85μV
S/N Ratio (Input short, Rated input, GAIN LOW, IHF-A)
RCA input (MM) 106dB
XLR input (MC) 86dB

RIAA deviation (20-20kHz) ±0.05dB
Channel separation -90dB or more (MM, 10kHz, GAIN LOW)
Gain
GAIN LOW
RCA input (MM) 34dB
RCA input (MC) 54dB
XLR input (MC) 54dB
GAIN HIGH
RCA input (MM) 46dB
RCA input (MC) 66dB
XLR input (MC) 66dB
Subsonic filter 17Hz, -24dB/octave

・Phono Input Section
Unbalanced input RCA terminal (common for MC/MM) x 1 system
Maximum allowable input voltage 150mV (MM, distortion 0.1%, GAIN LOW)
　 16mV (MC, distortion 0.1%, GAIN LOW)
Input impedance※
MM 47kΩ, Load capacitance 0, 100, 220, 330pF
MC 10, 22, 47, 100, 220, 470, 1kΩ
Balanced input XLR terminal (MC only) x 1 system
Maximum allowable input voltage 16mV (MC, distortion 0.1%, GAIN LOW)
Input impedance※ MC 10, 22, 47, 100, 220, 470, 1kΩ

・Analog Output Section
  Unbalanced output RCA terminal x 1 system
Rated output voltage 2Vrms
Output impedance 63Ω
Balanced output XLR terminal x 1 system
Rated output voltage 4Vrms
Output impedance 126Ω

・General
Power supply AC 100V, 50/60Hz
Power consumption 14W
External dimensions / Mass 290(W)x 84.5(H)x 252.5(D)mm (including protrusions) / 4.5 kg
Accessories Power cord, cushion for feet x 3, instruction manual (with warranty)

This product is a manufacturer-direct product.
In the following cases, deliveries will be made separately for each manufacturer:
・If you order a manufacturer-direct product and other products at the same time
・If you order multiple direct products from different manufacturers

The images are for illustration purposes only.
Specifications, appearance, and packaging are subject to change without notice for improvement.
